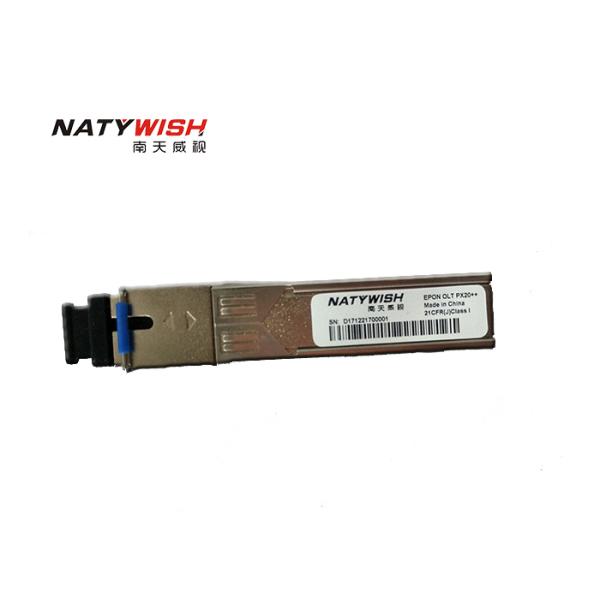

GEPON / EPON PX20++ OLT Optical SFP Module Tx1310nm Rx1490nm 20km , SC

single fiber singlemode for EPON OLT device.

PON Overview

Ethernet Passive Optical Networks (GEPON or EPON) is the leading technology being used in FTTx (FTTH) deployments. PON is different than other optical network topologies in that it is a Point to Multi-Point (P2MP) topology. From the Central Office’s (CO) Optical Line Terminal (OLT, with SFP GEPON transceiver/module) a single strand of fiber goes out to a passive optical splitter where its signal is multiplied to 32(64) different lines. The Transmit and Receive signals operate on different wavelengths allowing bi-directional operation over a single fiber. Anything transmitted from the OLT is transmitted to all 32 lines. It is up to the customer’s system (Optical Network Unit - ONU) to determine what packets are for that customer. All other packets are discarded. The PON current standards have defined downstream data rates up to 1.25Gbps.
IEEE 802.3ah. EPON or GEPON (Ethernet PON) is an IEEE/EFM standard for using Ethernet for packet data.

Product Application

• Passive Opitacal Access Network
• Fiber to the Home
• Fiber to the Building
• Fiber to the Curb

Product Features

Optical Characteristics

Parameter	Unit	Min.		Typ.	Max.
TX Central Wavelength	nm	1480			1500
Spectral Width (-20dB)	nm				1
SMSR	dB	30
Mean Launched Power	dBm	5			8
Mean Launched Power (TX Off)	dBm				-39
Extinction Ratio(Note 1)	dB	9
TX Total Jitter	UI				0.43
Rise/Fall Time (20%-80%)	ps				260
RIN₁₅OMA	dB/Hz				-115
Optical Return Loss Tolerance	dB				-12
Transmitter and dispersion Penalty(20km G.652)	dB				2.3
TX Optical Eye Mask	Compliant With IEEE Std 802.3ah™-2004
Receive Wavelength	nm		1260		1360
Sensitivity (Note 2)	dBm				-33
Overload	dBm		-6
Dynamic Rang	dB		25
Receiver Threshold Settling Time	ns				250
RX Dynamic Range(Note 3)	dBm		-30		-6
LOS-Deassert	dBm				-34
LOS-Assert	dBm		-45
SD Hysteresis	dB		0.5		6
Receiver Reflectance	dB				-12

Note:

3, RX Dynamic Range Definition

Electrical Characteristics

Parameter	Unit	Min.	Typical	Max.
Power Supply Current	mA			300
Data Input Differential Swing	mV	200		1600
Data Differential Impedance	Ω	90	100	110
TTL Input -Low	V	0		0.8
TTL Input -High	V	2.0		Vcc
TTL Output -Low	V	0		0.4
TTL Output -High	V	2.4		Vcc
Data Output Differential Swing	mV	400		1600
Los Assert Time	ns			500
Los Deassert Time	ns			500

Ordering Information

Ordering P/Ns	Description
NTW - GES20++AS	EPON OLT PX20++ Diplexer, 30km, Tx 1490nm 1.25G, Rx 1310nm 1.25G, SFP form-factor, SC/UPC receptacle connector, Commercial temperature.
